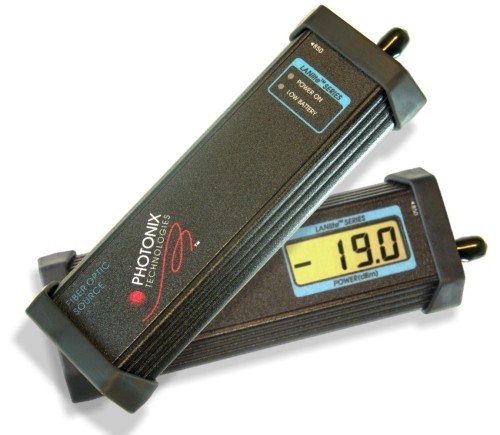

PX-D200 LANLITE™ 850nm ST TEST SET
Availability: Call For Availability
This set was designed to provide the test technician with an inexpensive, accurate, and easy to use instrument kit for making power and loss measurements in the fiber optic LAN environment.
The test set offers 850nm operation to provide power or loss measurement solutions for short wavelength fiber testing. Power for both the meter and source is supplied by a single cartridge loaded
9V battery which will yield a typical battery life of 80 hours and 14 hours respectively. A low battery indicator is included on both units to ensure accurate measurements.
Regarding durability, the LANLITE™ test sets are built of machined aluminum, not plastic, and therefore have structural integrity and a feel superior to that of most fiber test equipment. Finally, these units are very easy to use. To make a power measurement, simply connect the fiber, flip the power switch and begin testing.
| Parameter | Value | Parameter | Value |
| Model | PX-D200 | Meter Accuracy | ±0.3 dB |
| Wavelength Source | 850±20nm | Meter Resolution | 0.01db |
| Fiber Size | 100/140 (max) | Operating Temperature | 0°C to 50°C |
| Port Style | ST | Storage Temperature | -10°C to 60°C |
| Source Pmin | -20dBm | Humidity | 10%to90% non-condensing |
| Source Stability | ±0.05 (dB/8hr) | Power | Standard 9V Alkaline |
| Source Bandwidth | 60nm (max) | Battery Life |
14+ hrs (Source) (typ) 80+ hrs (Meter) (typ) |
| Meter Resolution | 0.01db |
~ Meter and Source: 850nm
~ Ultra low cost
~ 0.01db resolution with zero reference
~ True stand alone meter
~ Temperature stabilized operation
~ Low battery indication
~ Sealed waterproof carry case
|
